About this vehicle
Description

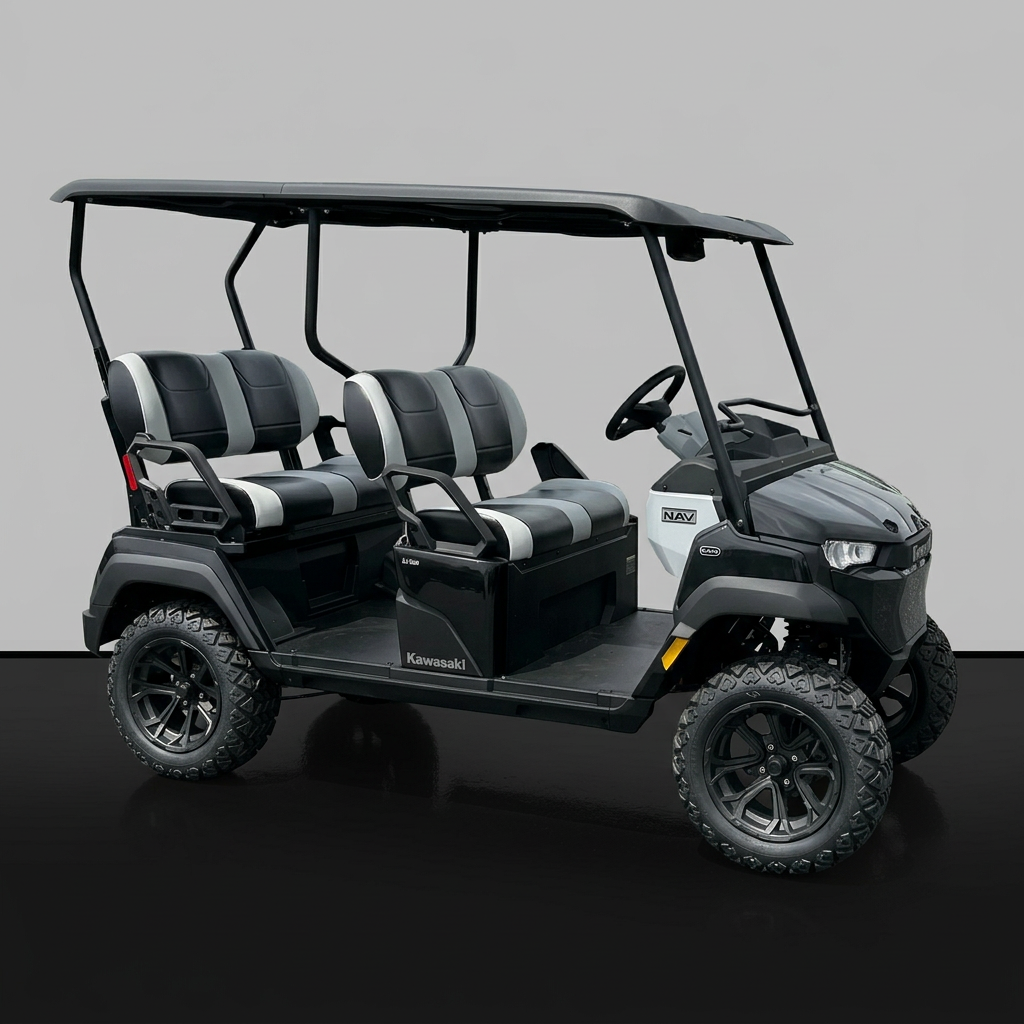

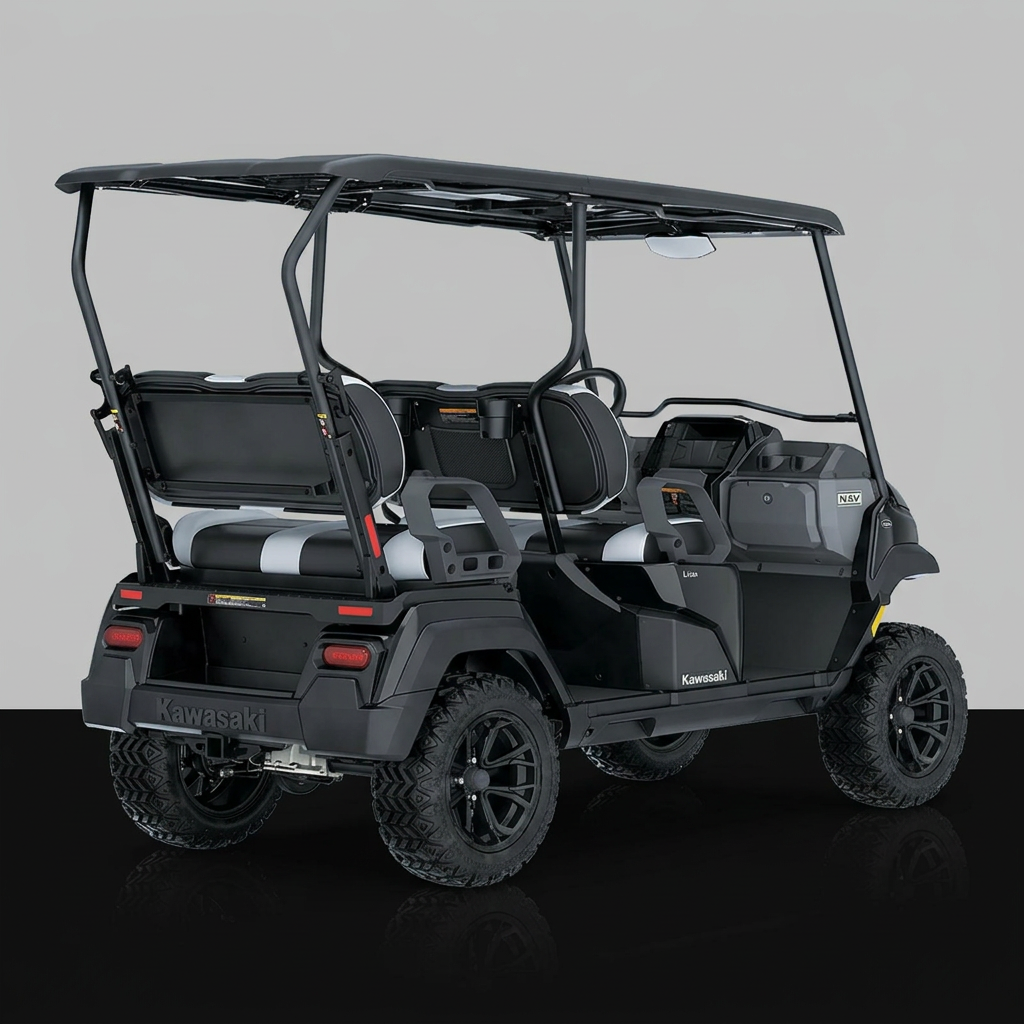

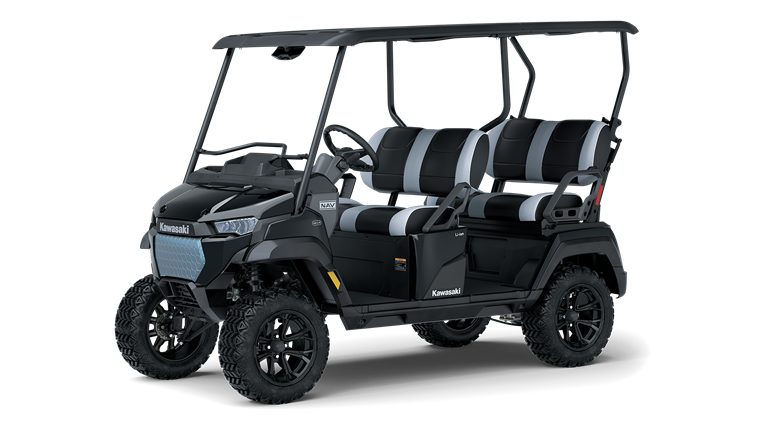

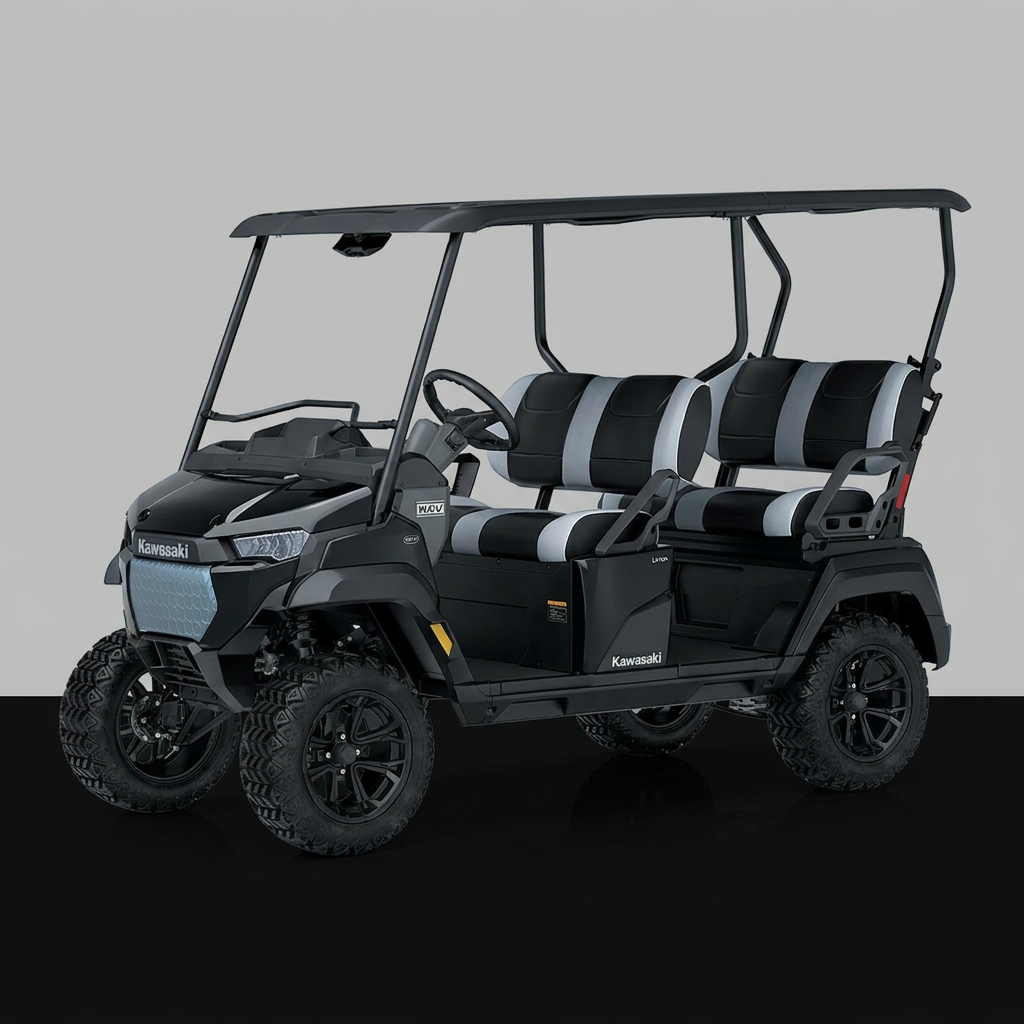

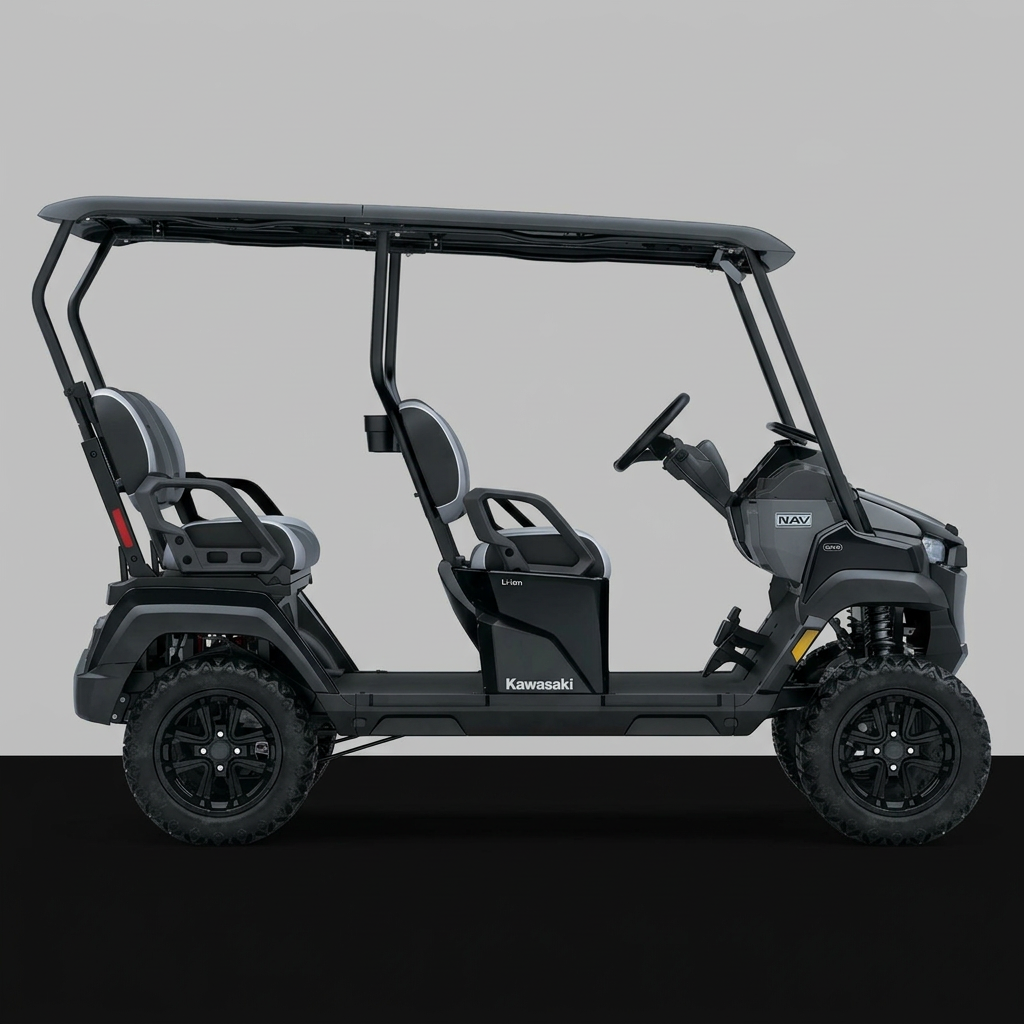

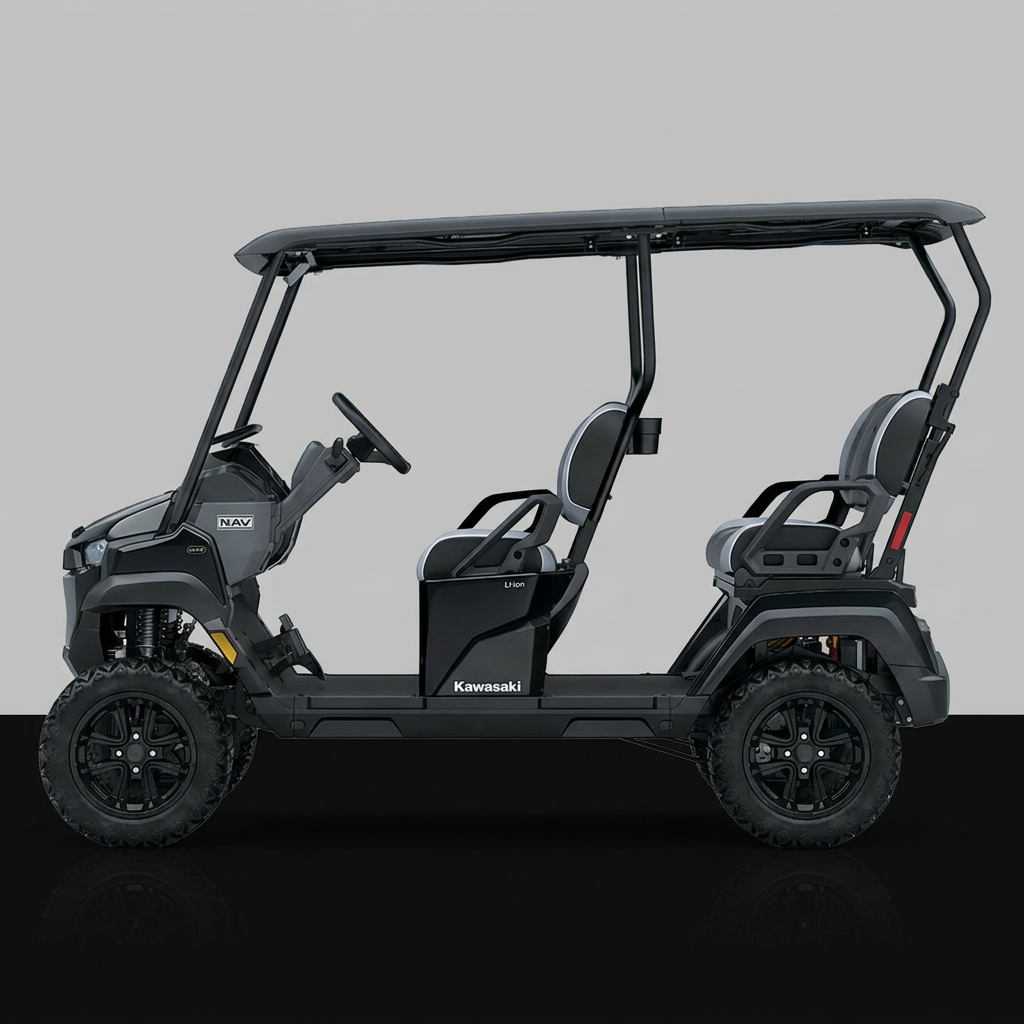

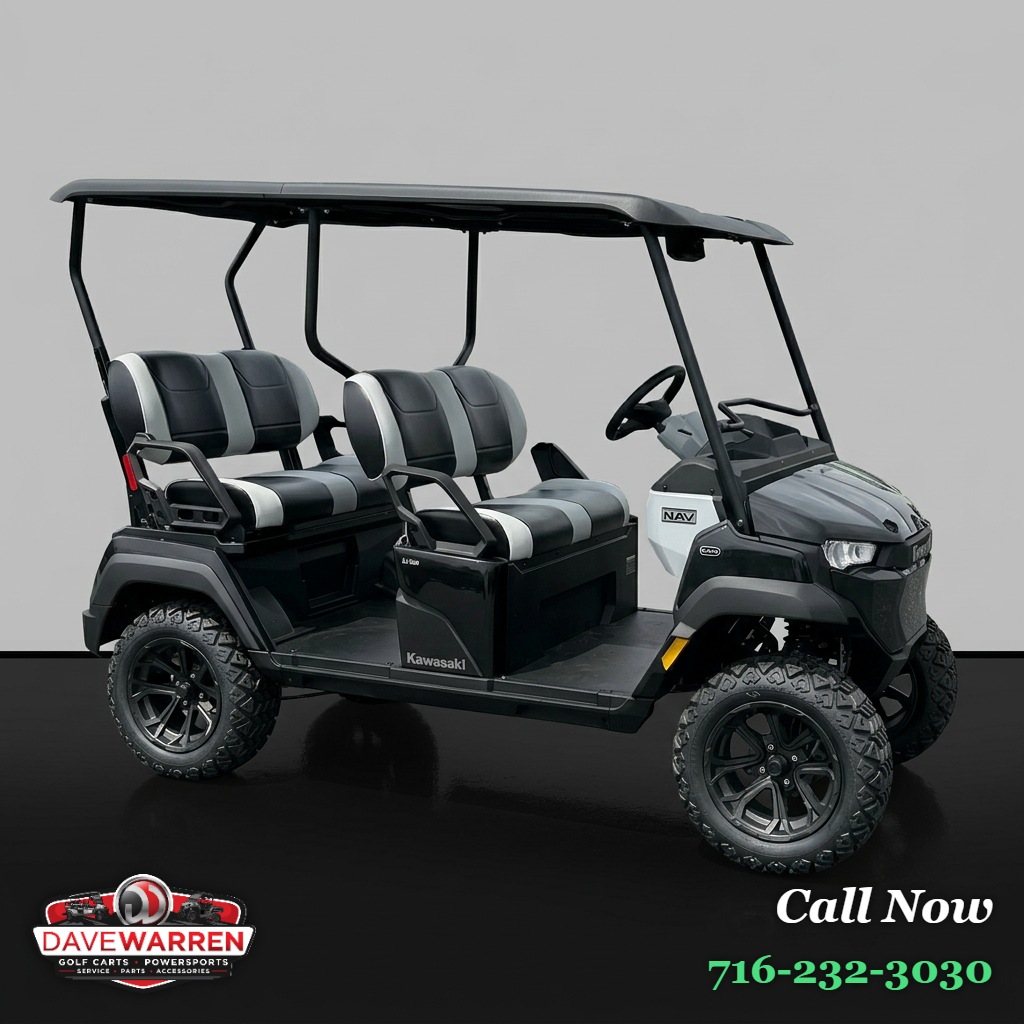

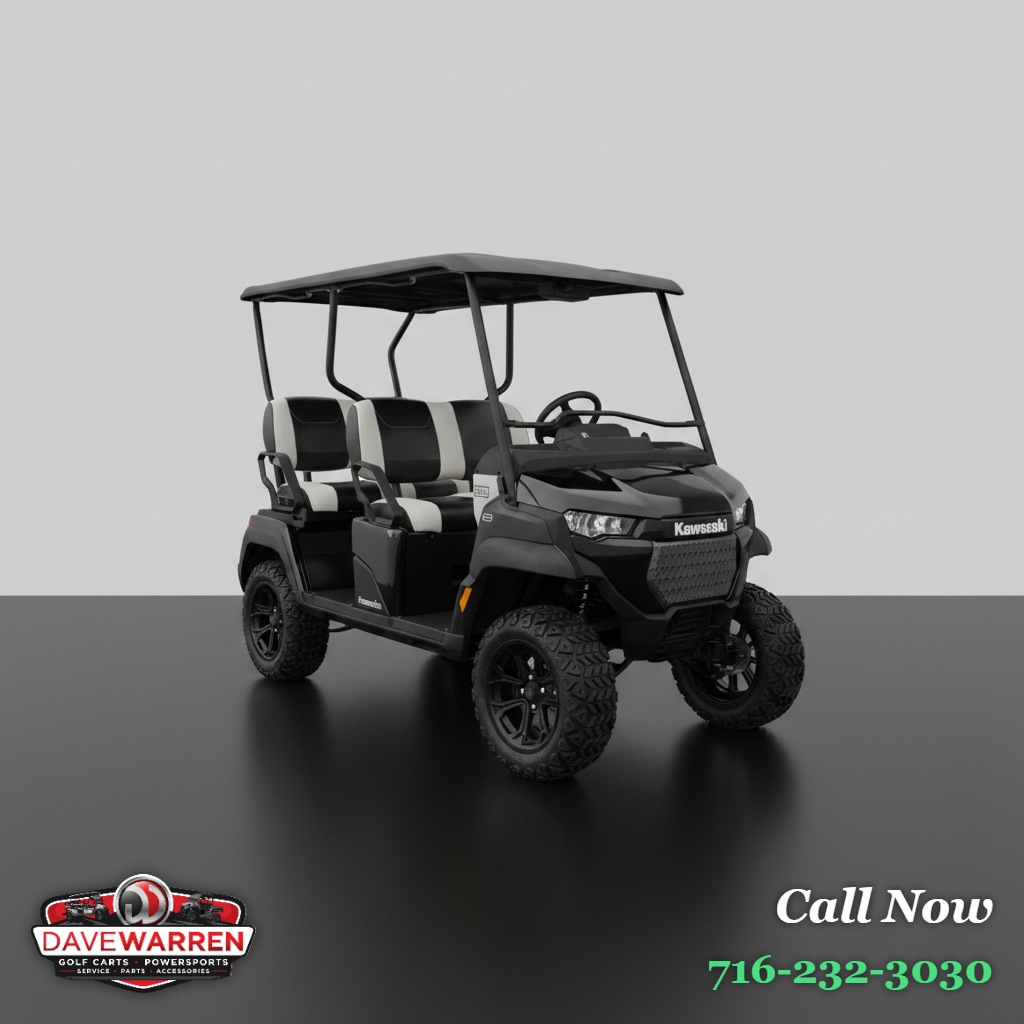

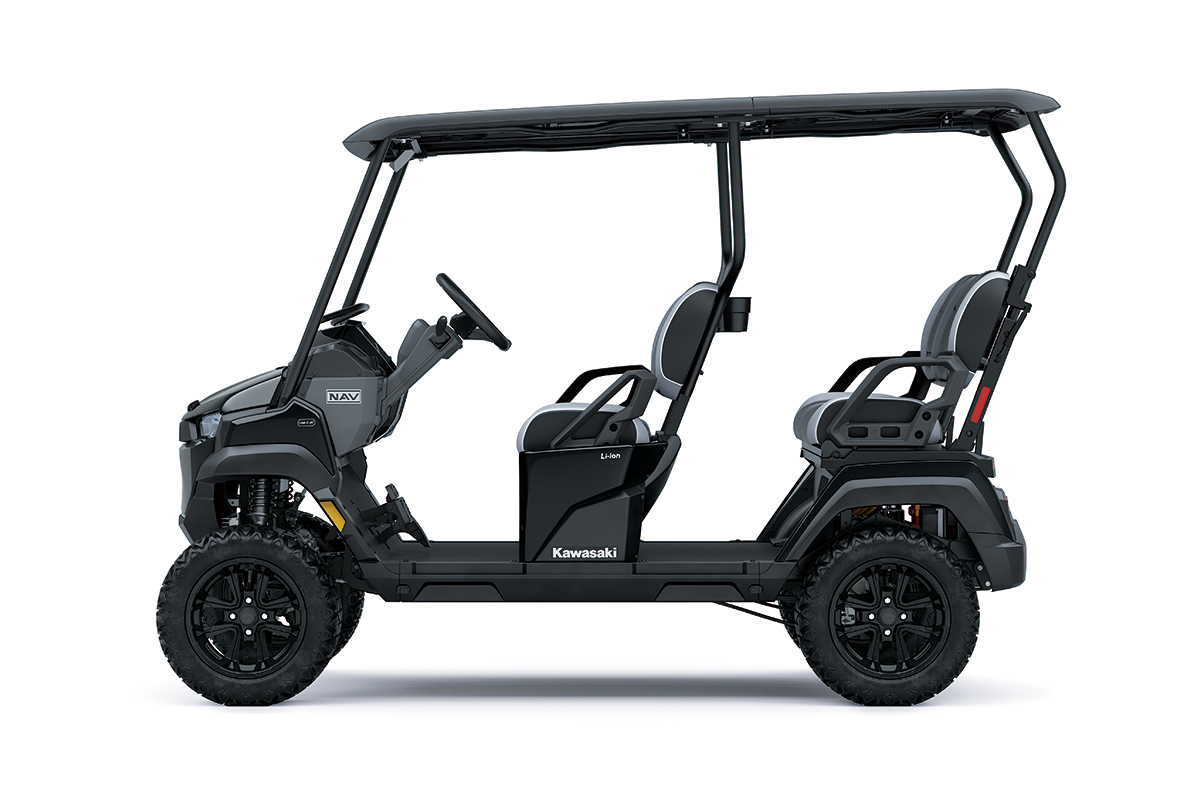

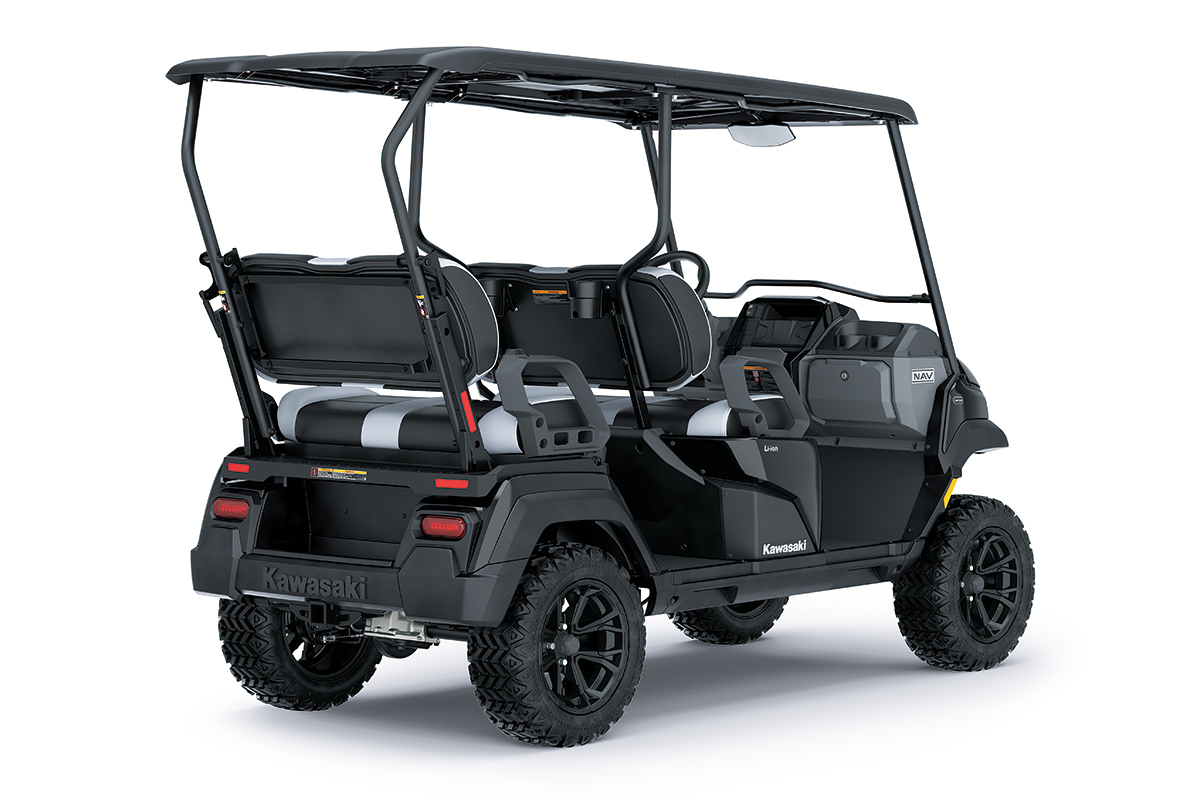

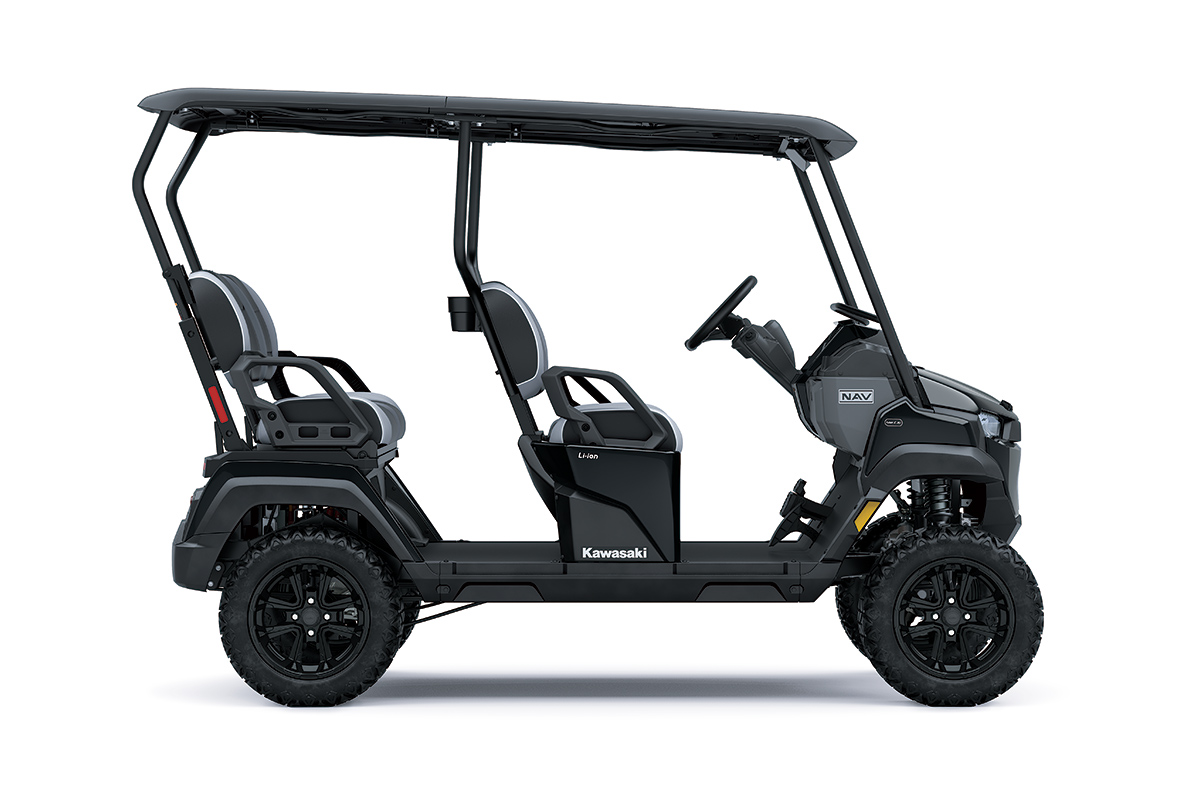

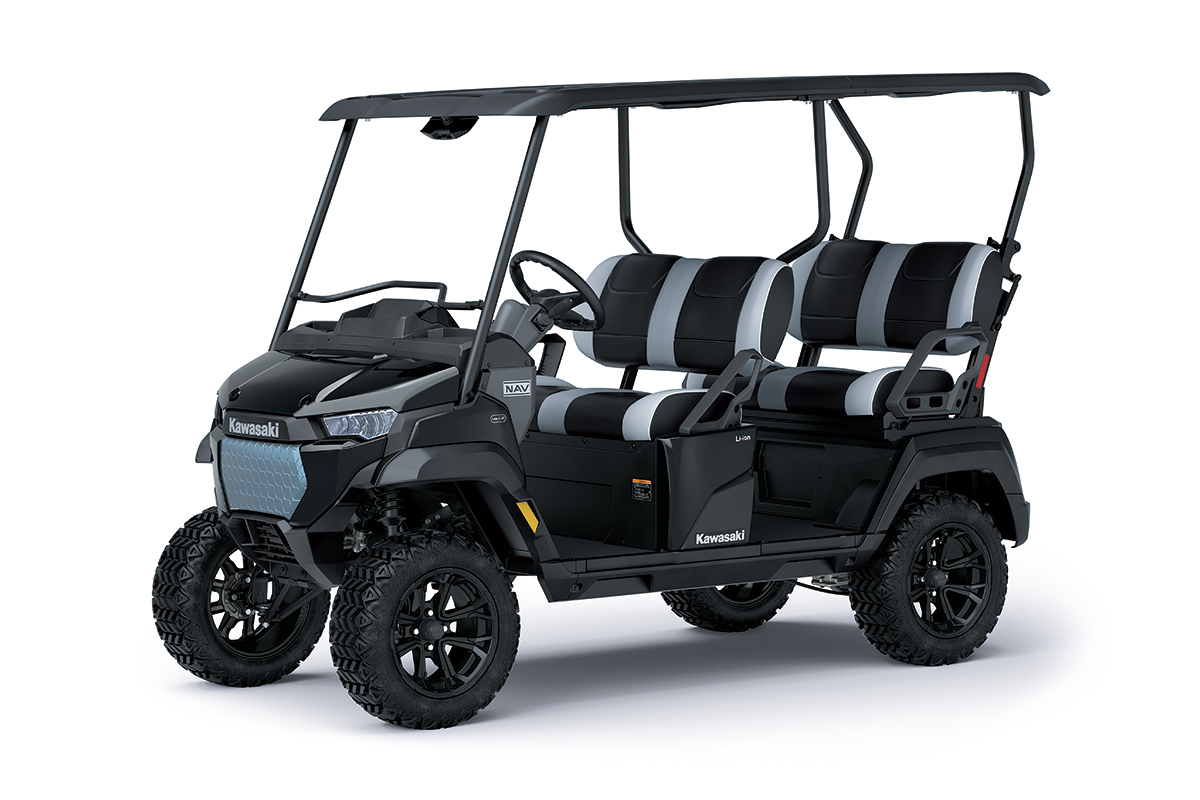

Meet the NAV®: our first-ever Personal Transportation Vehicle (PTV) designed for cruising the good life. With premium, sporty design and comfort for the whole family, the NAV isn’t just another ride. It’s a game changer for the PTV market. Thoughtfully equipped with a category-first fold-flat seat, expandable front and rear storage, cupholders, USB ports, and all-LED lighting, the NAV is as functional as it is fun. So, you can cruise from the pool to the BBQ to the pickleball courts—and beyond.
FEATURING:
PREMIUM LIFTED STYLING WITH RAISED FRONT FENDERS

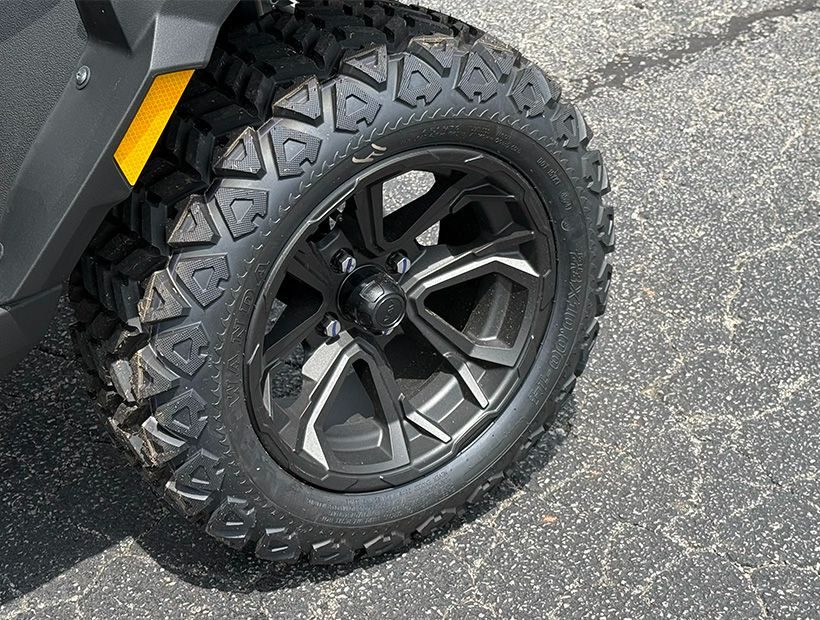

14-IN WHEELS AND 23-IN OFF-ROAD STYLE TIRES

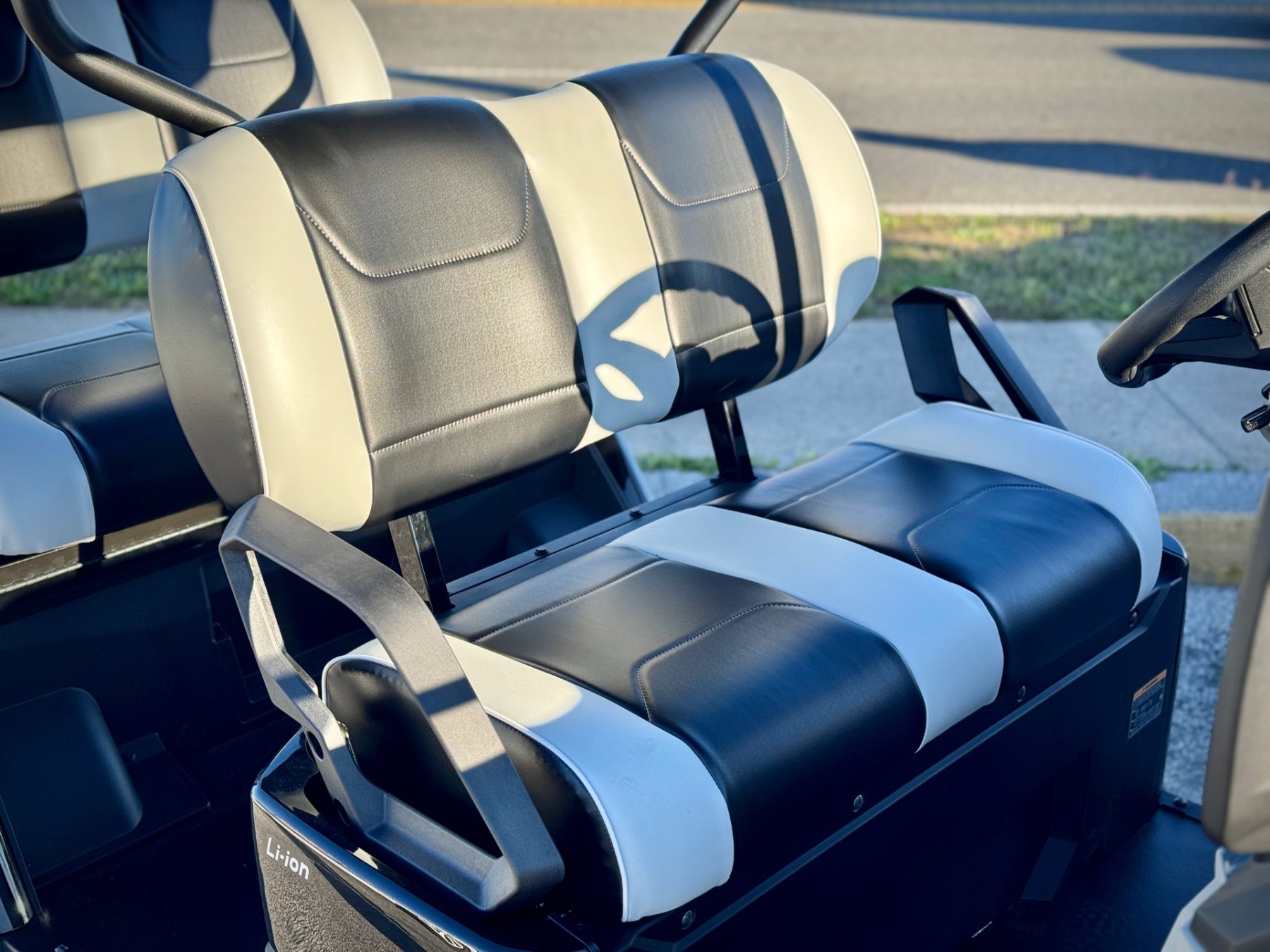

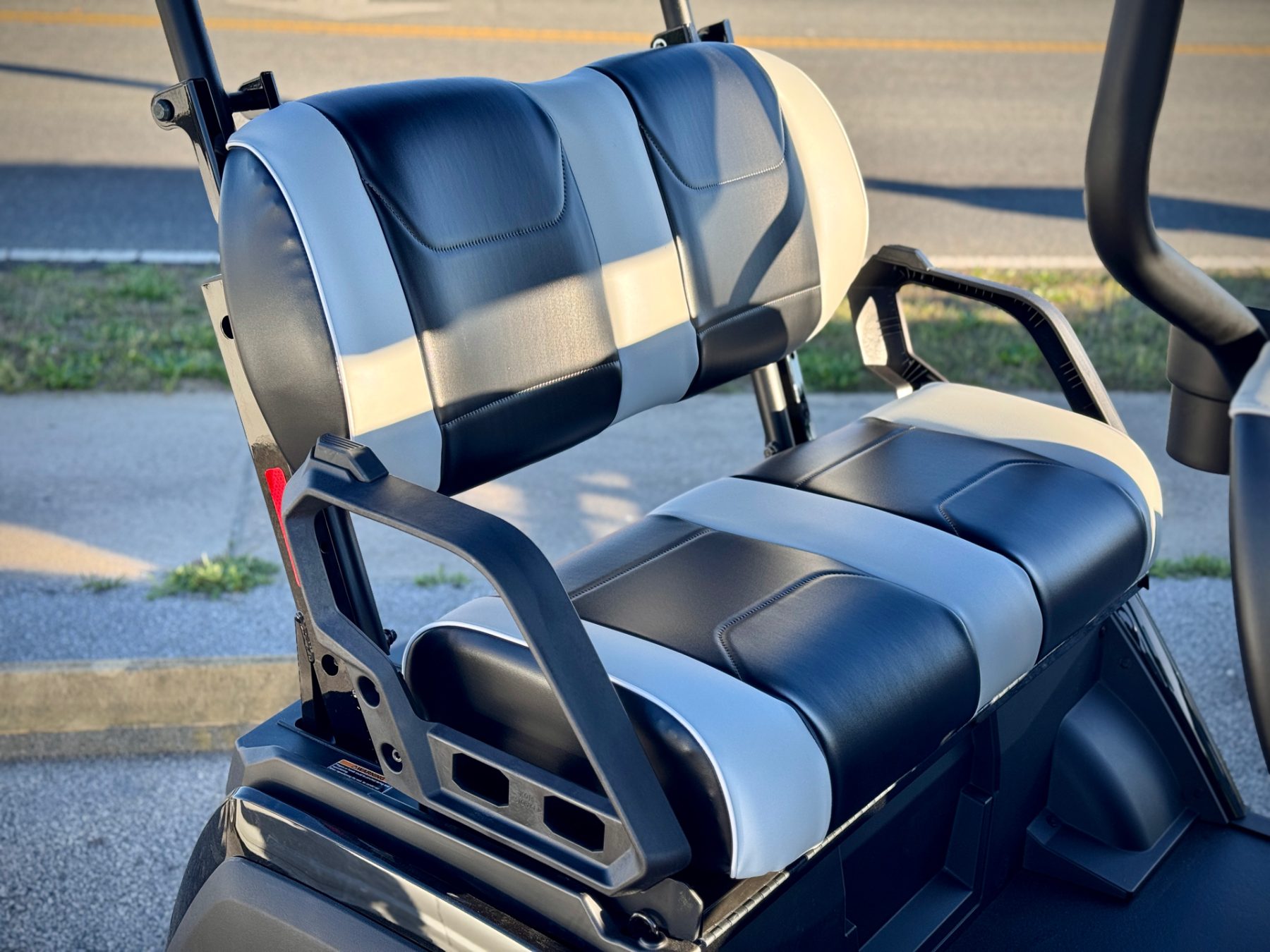

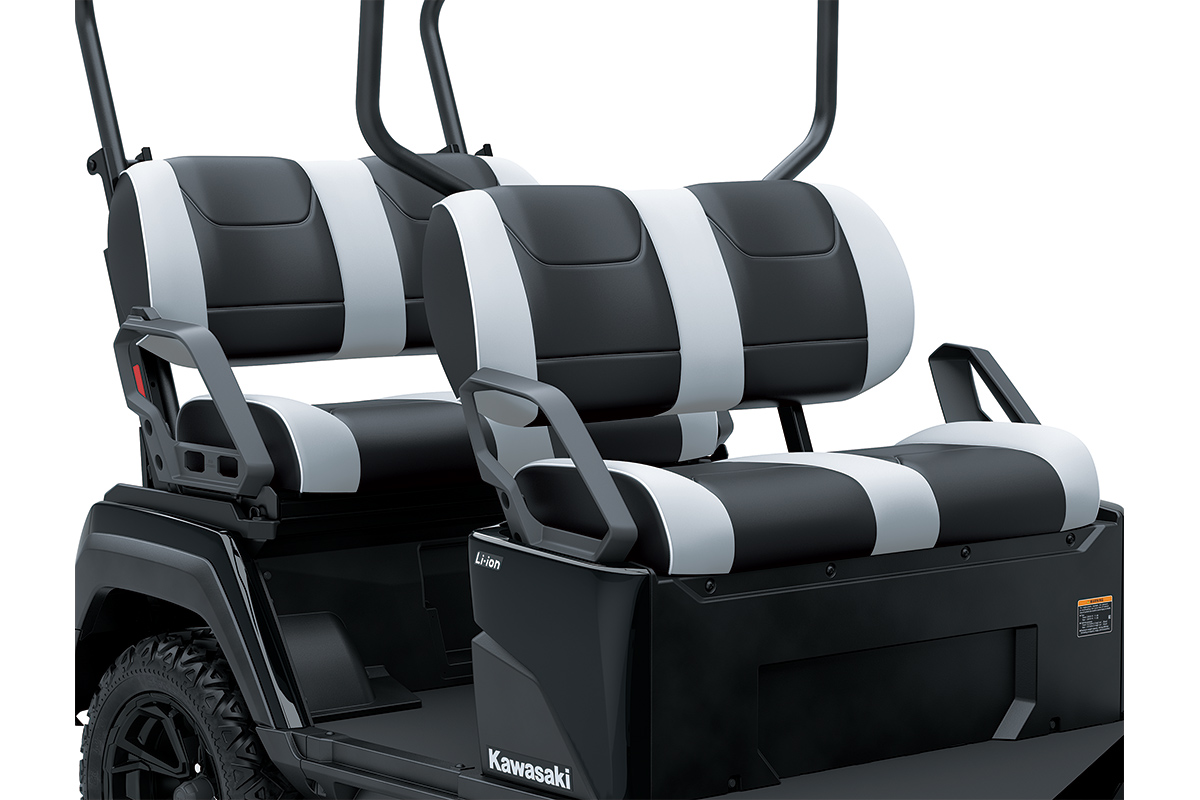

ROOMY INTERIOR WITH ELEGANT & COMFORTABLE SEATS

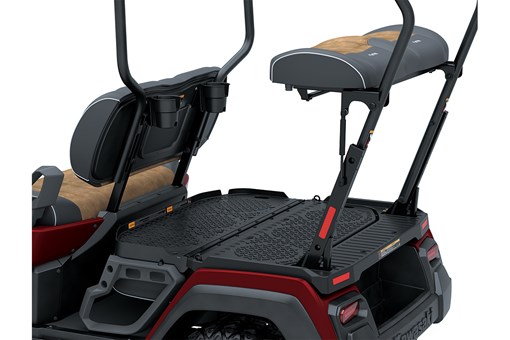

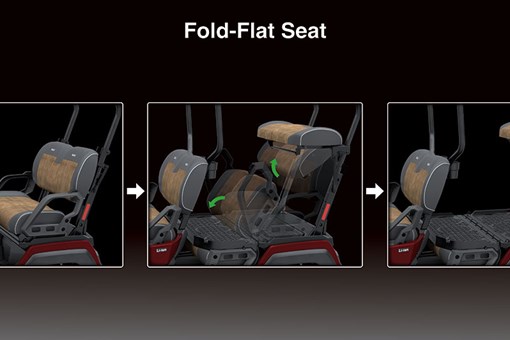

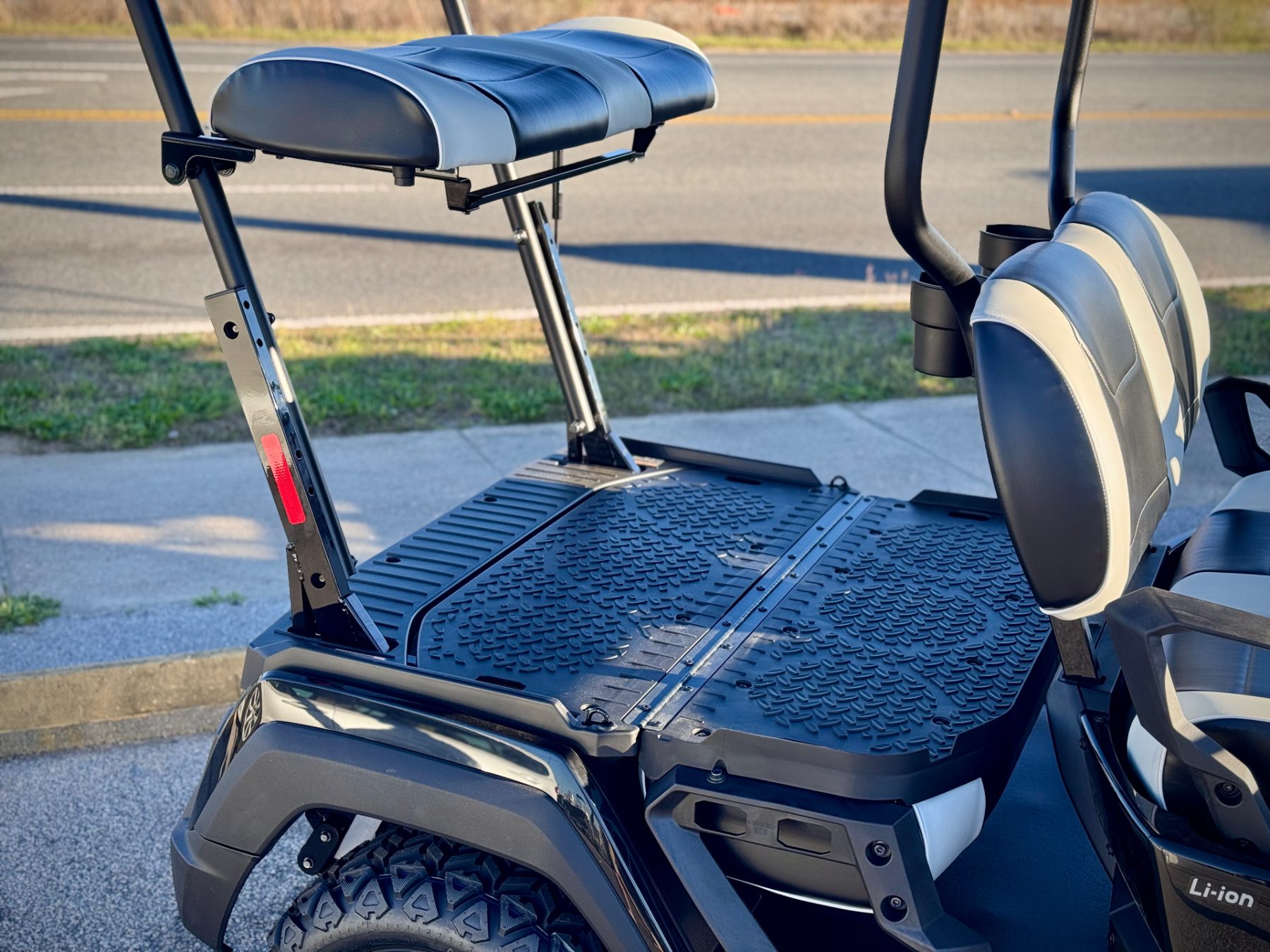

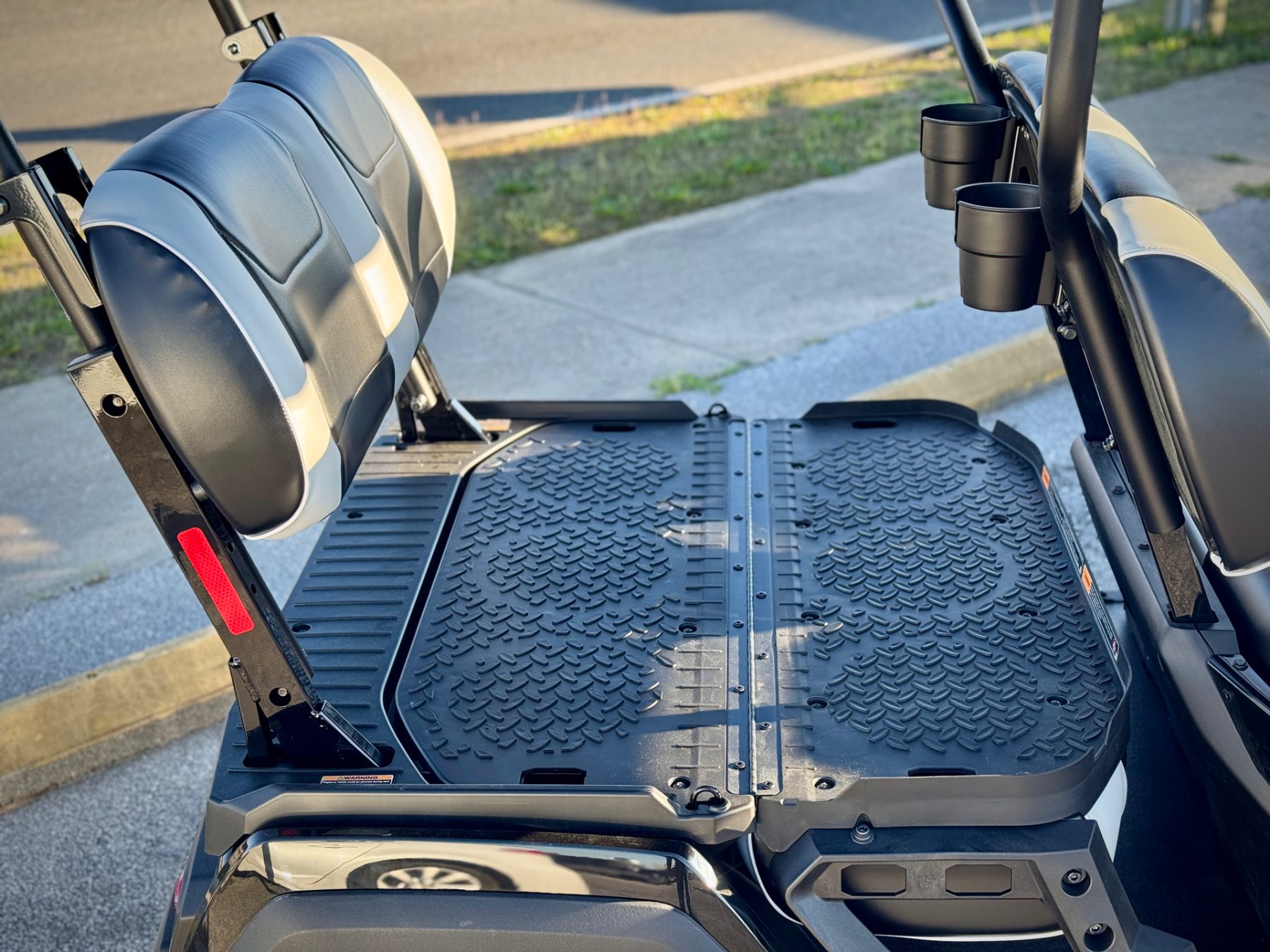

FIRST IN CATEGORY* FOLD-FLAT SEAT IN REAR

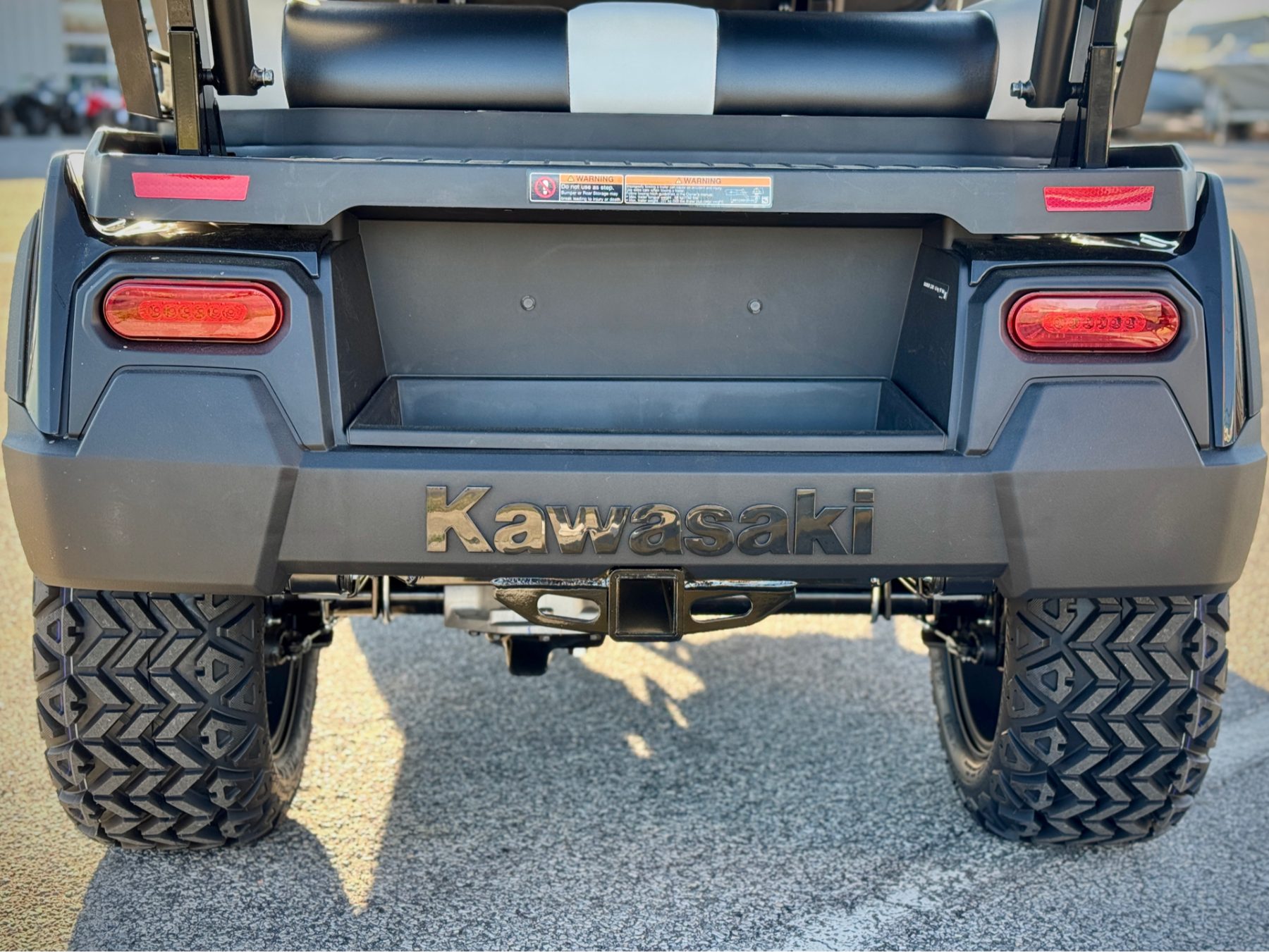

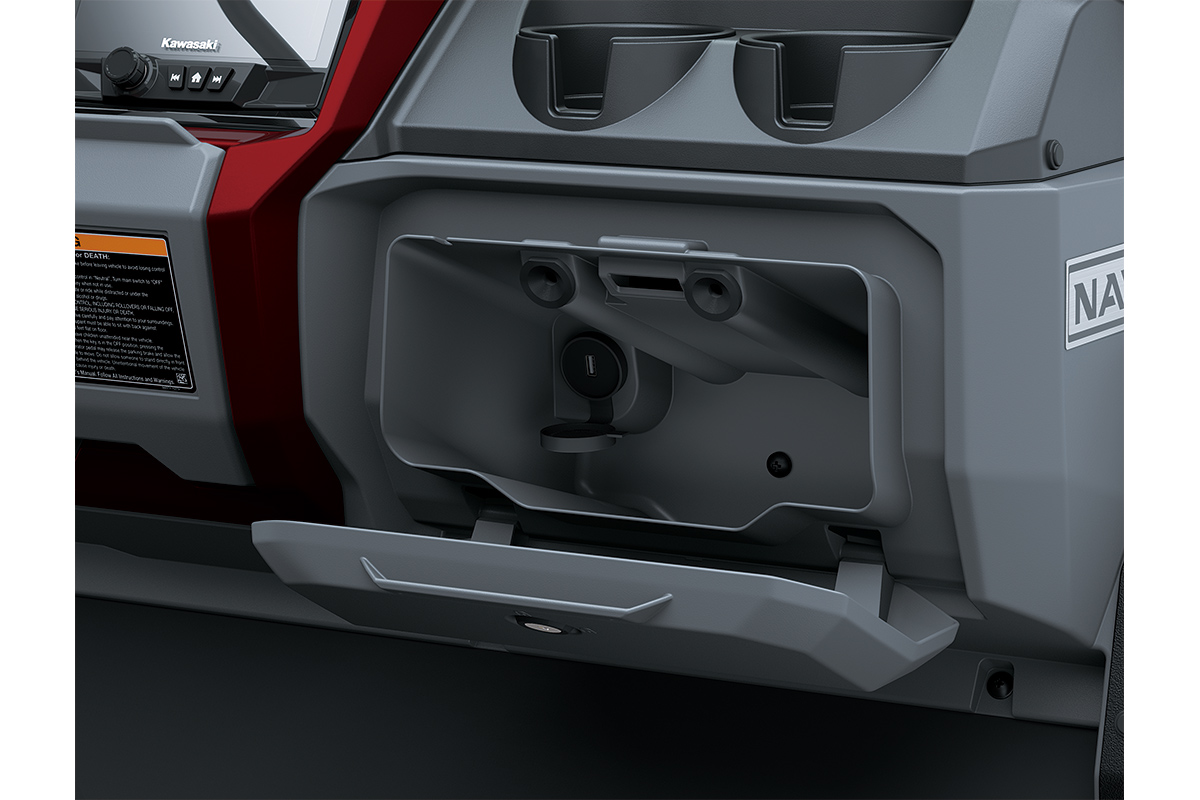

FUNCTIONAL AND SPACIOUS FRONT & REAR STORAGE

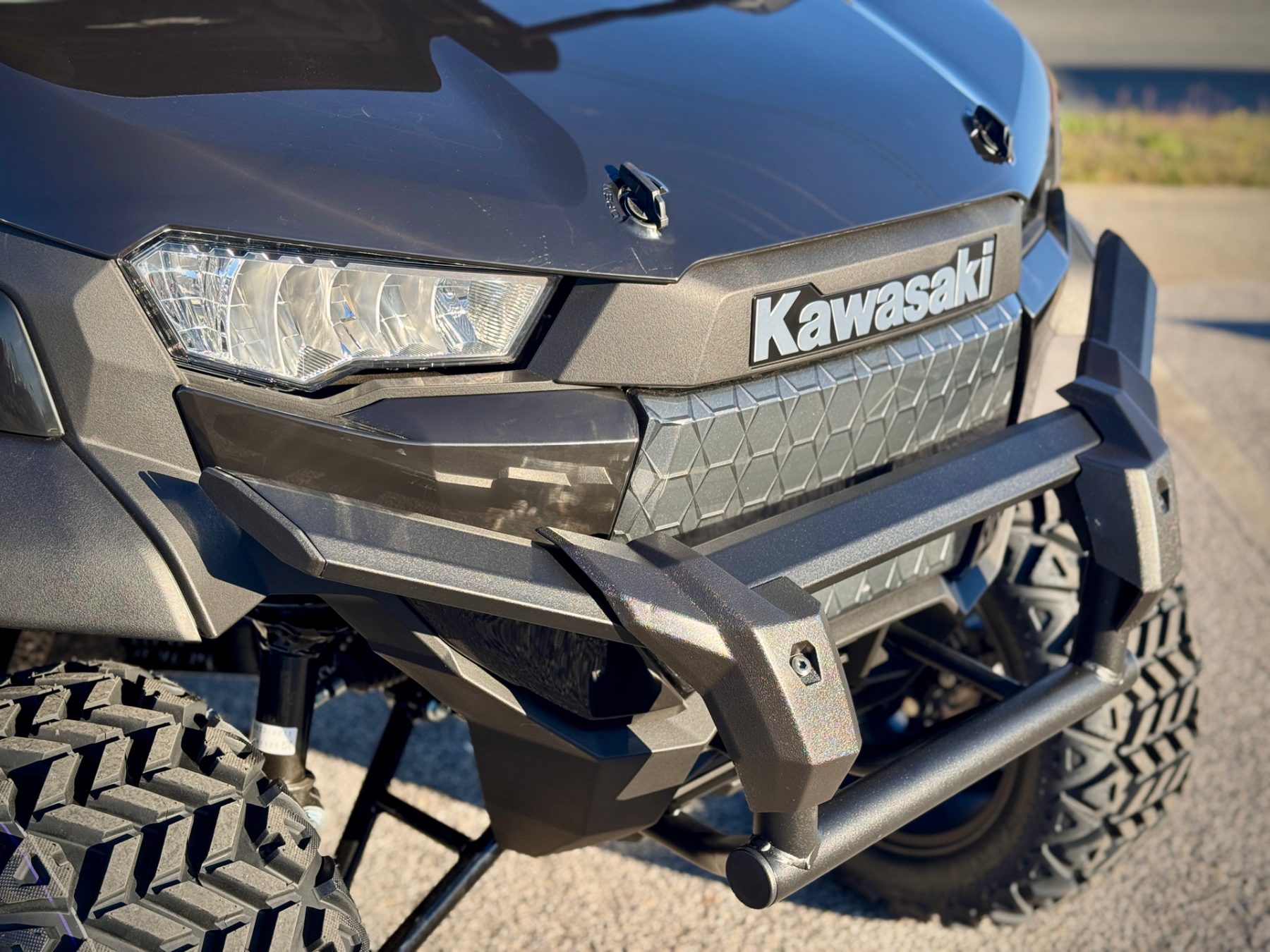

ALL-LED LIGHTING WITH UNIQUE KAWASAKI FRONT-END DESIGN
SMOOTH AIR-COOLED INDUCTION MOTOR
RUGGED CHASSIS DESIGN WITH STRONG STEEL LADDER FRAME
PREMIUM 3D KAWASAKI EMBLEM
ADDITIONAL VEHICLE FEATURES:
Lithium-ion battery
POWER
POWER
Motor Type Air-cooled induction motor
Rated Power 4.0 kW @ 5,200 rpm
Maximum Power 10.7 kW @ 2,000 rpm
Maximum Torque 37.6 lb-ft @ 2,000 rpm
Maximum Speed 19 mph
Battery Type Lithium-ion battery (x2)
Battery Voltage/Capacity 51.7 V (x2)
Battery Range (est.) Up to 40 miles
Battery Charge Time Approx. 11 hours (0-100%)
Transmission Type Primary reduction gear with Forward/Neutral/Reverse
Final Drive 2WD
Regenerative System Yes
CAPABILITY
CAPABILITY

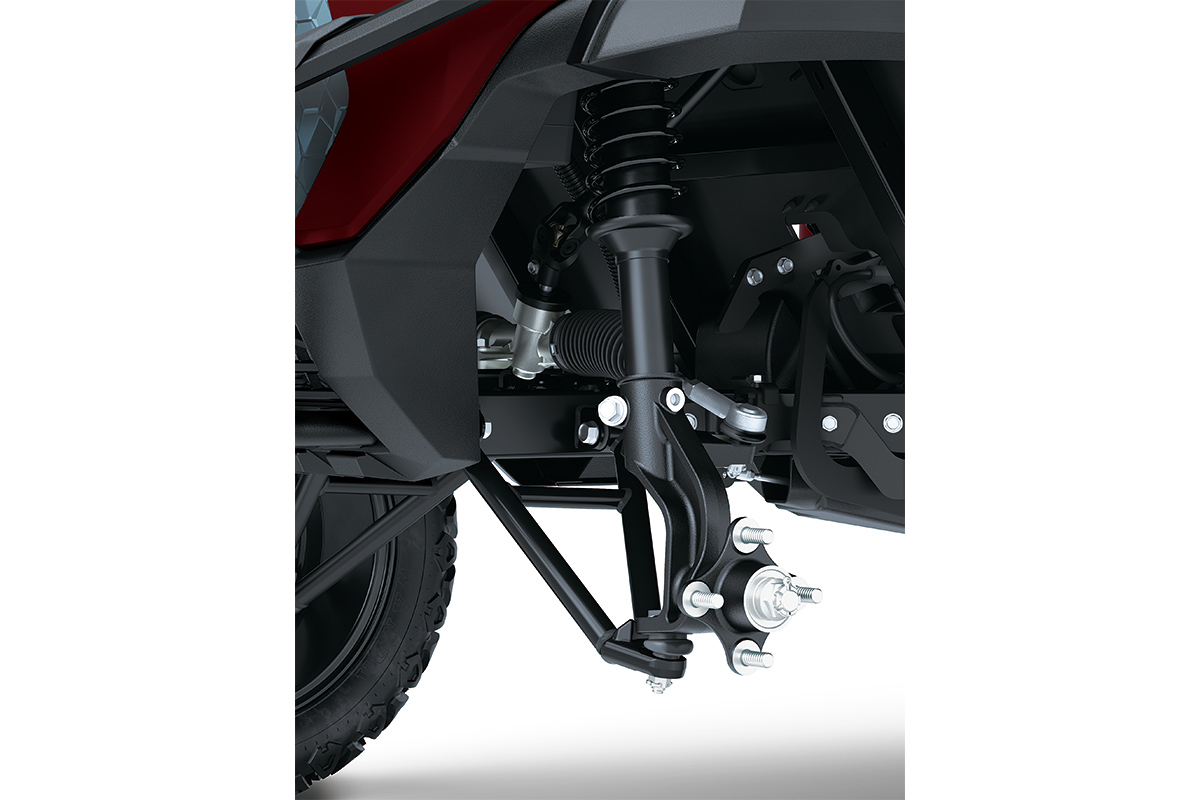

Front Suspension MacPherson strut
Rear Suspension Leaf springs with hydraulic shock absorbers
Front Tires 23 x 10-14
Rear Tires 23 x 10-14
Wheel Type 14″ aluminum
Steering Rack-and-pinion
Front Brakes N/A
Rear Brakes 160mm drum
Ground Clearance 7.3 in
Turning Radius 12.8 ft
Cargo Bed Dimensions (LxWxH) 31.0 x 40.3 x 0.9 in
Cargo Bed Load Capacity 150 lb
Payload Capacity 800 lb
Seating Capacity 4-person (2 row)
Towing Capacity 500 lb
Lighting All-LED lighting
DETAILS
DETAILS
Frame Ladder type, tubular steel
Overall Length 114.6 in
Overall Width 51.6 in
Overall Height 77.6 in
Estimated Dry Weight 1,005.5 lb**
Curb Weight 1,005.5 lb*
Wheelbase 79.9 in

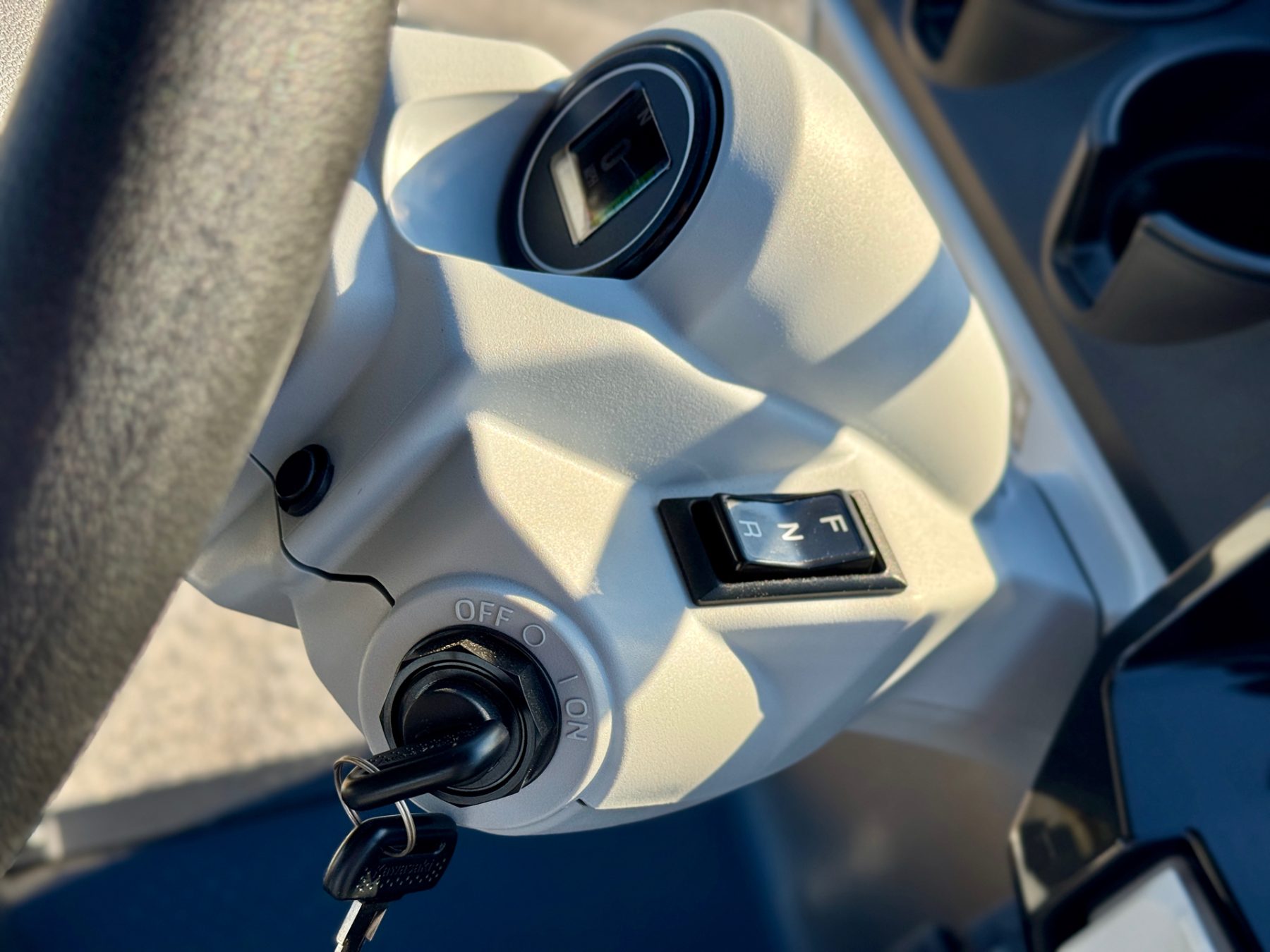

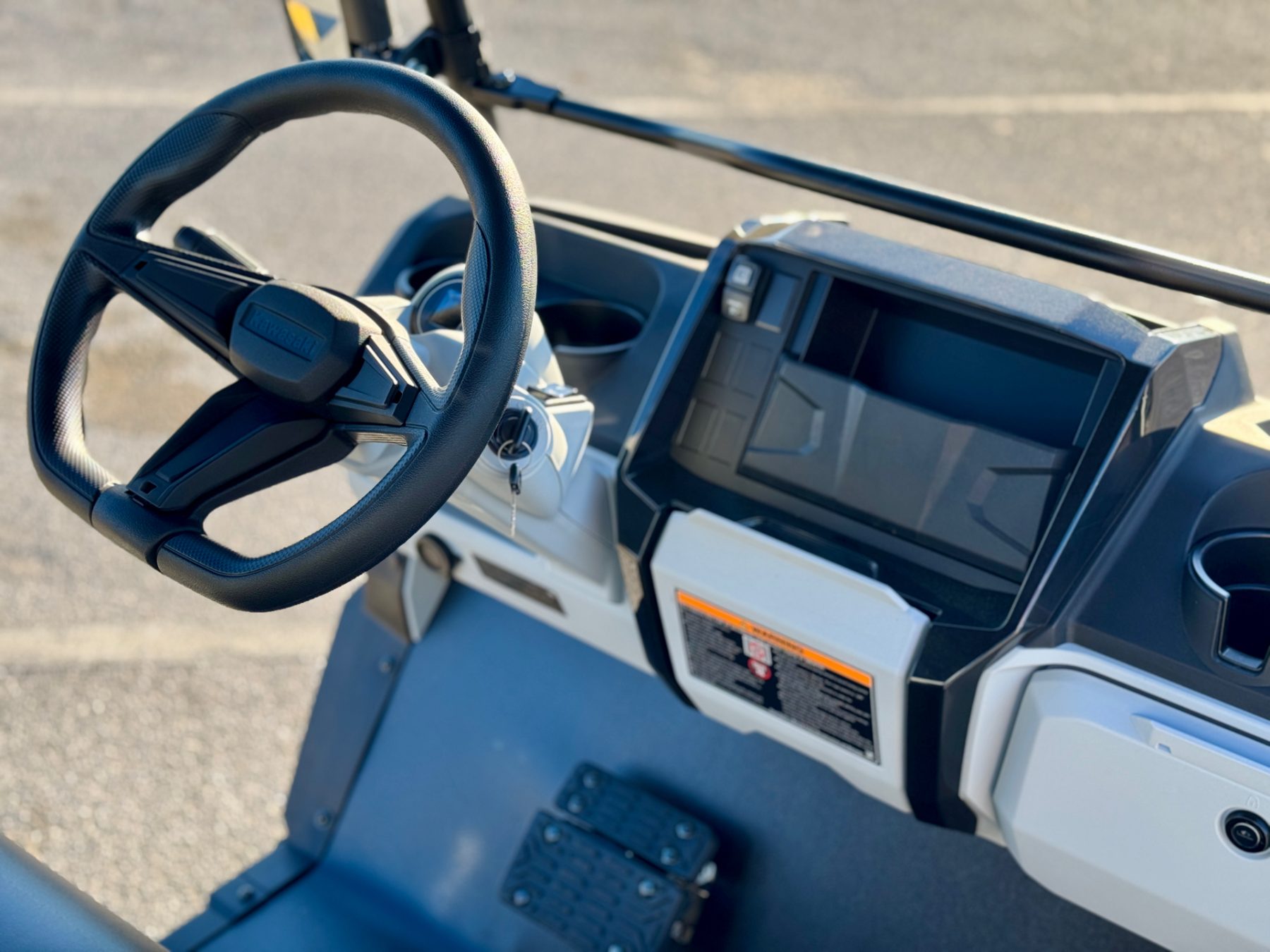

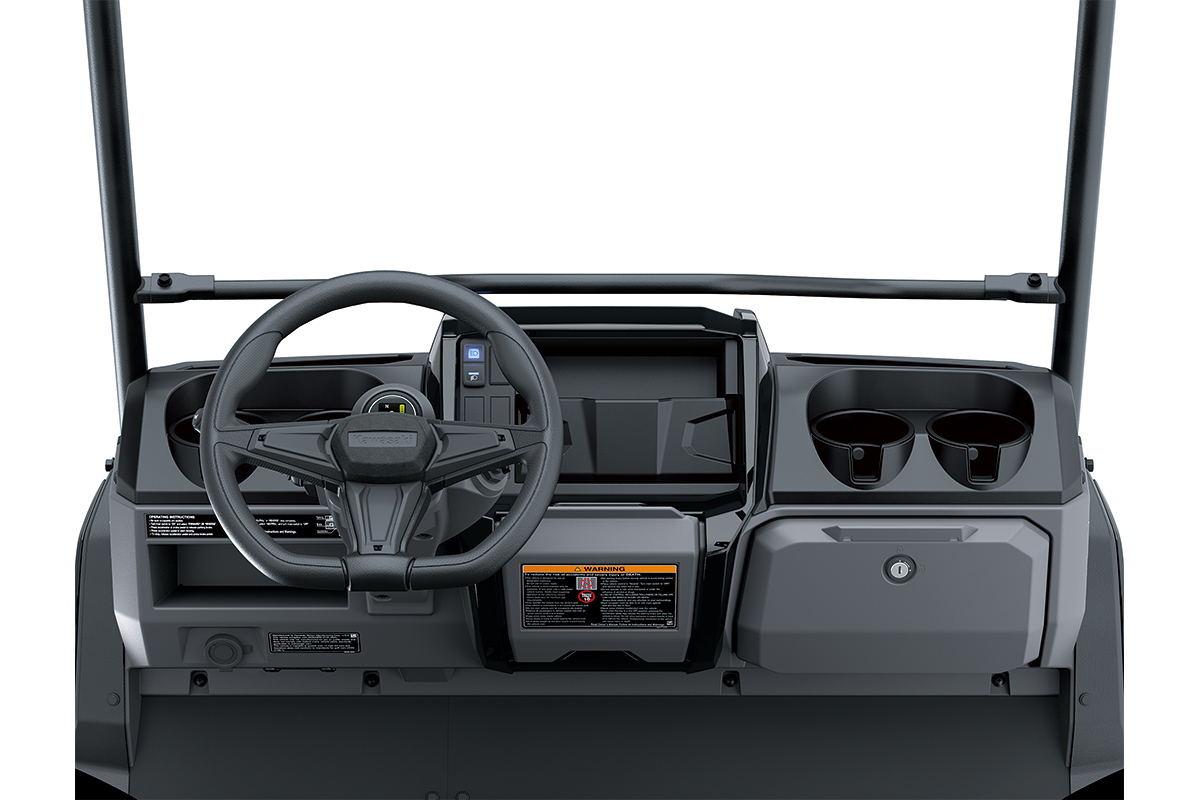

Instruments Forward/reverse/neutral indicator, hour meter, battery pack charge level, and turn signal indicator

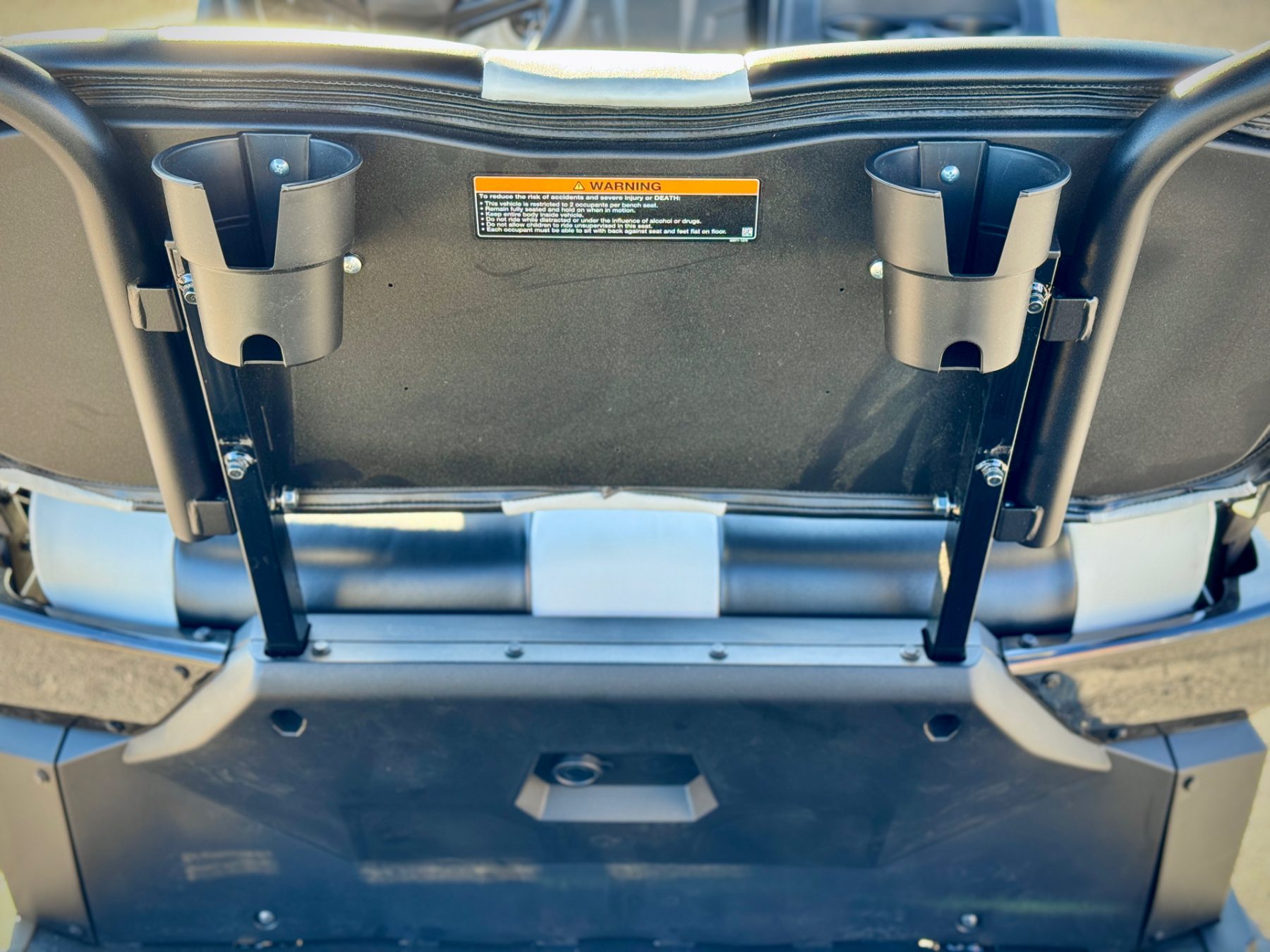

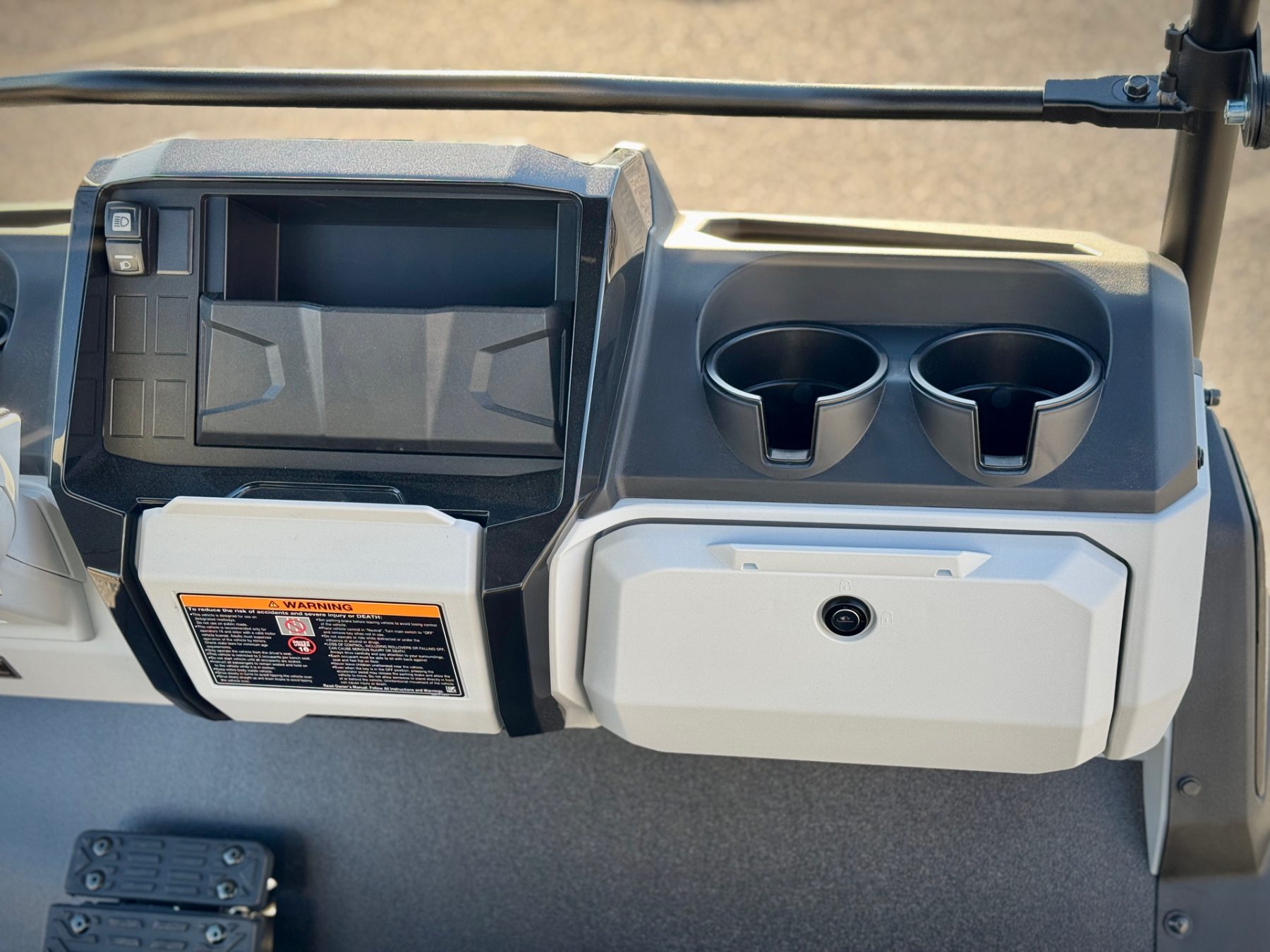

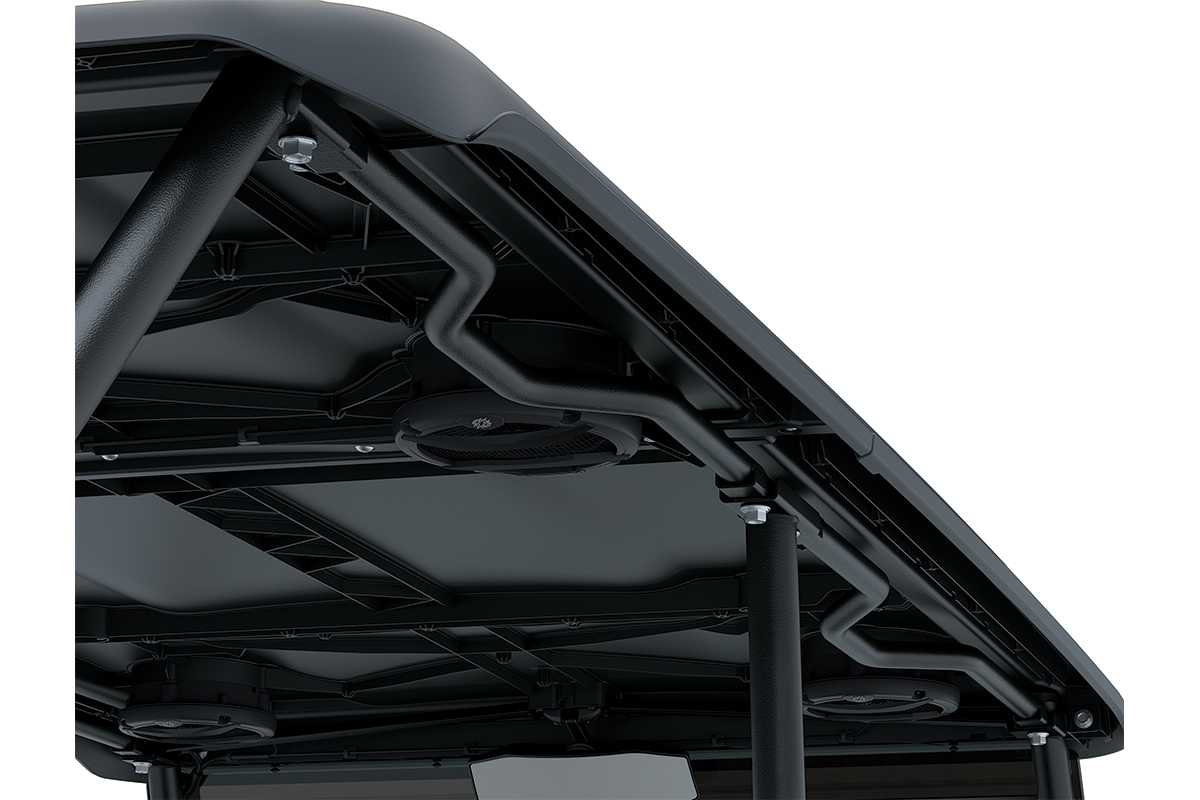

Additional Features Roof, Full-color TFT Instrumentation, 6 cup holders, 4 USB ports, Fold-Flat rear seat, Rubber floor mats, KQR™ system compatible
Color Choices Super Black
All units are plus tax, destination and assembly/PDI.
Destination
Covers the cost to transport the unit from the manufacturer to the dealership
Includes crating, shipping, fuel surcharges, and logistics handling
Assembly / PDI
Uncrating the unit
Professional assembly (specialty tools required)
Fluids, battery install, torque checks
Safety inspection and test run
This ensures your bike/ATV/SxS is safe, inspected, and warrantied correctly
Manufacturers require proper setup for the warranty to be valid
